e-Loop Exit

e-Loop Exit

Regular price
$880.00
Sale price
$880.00

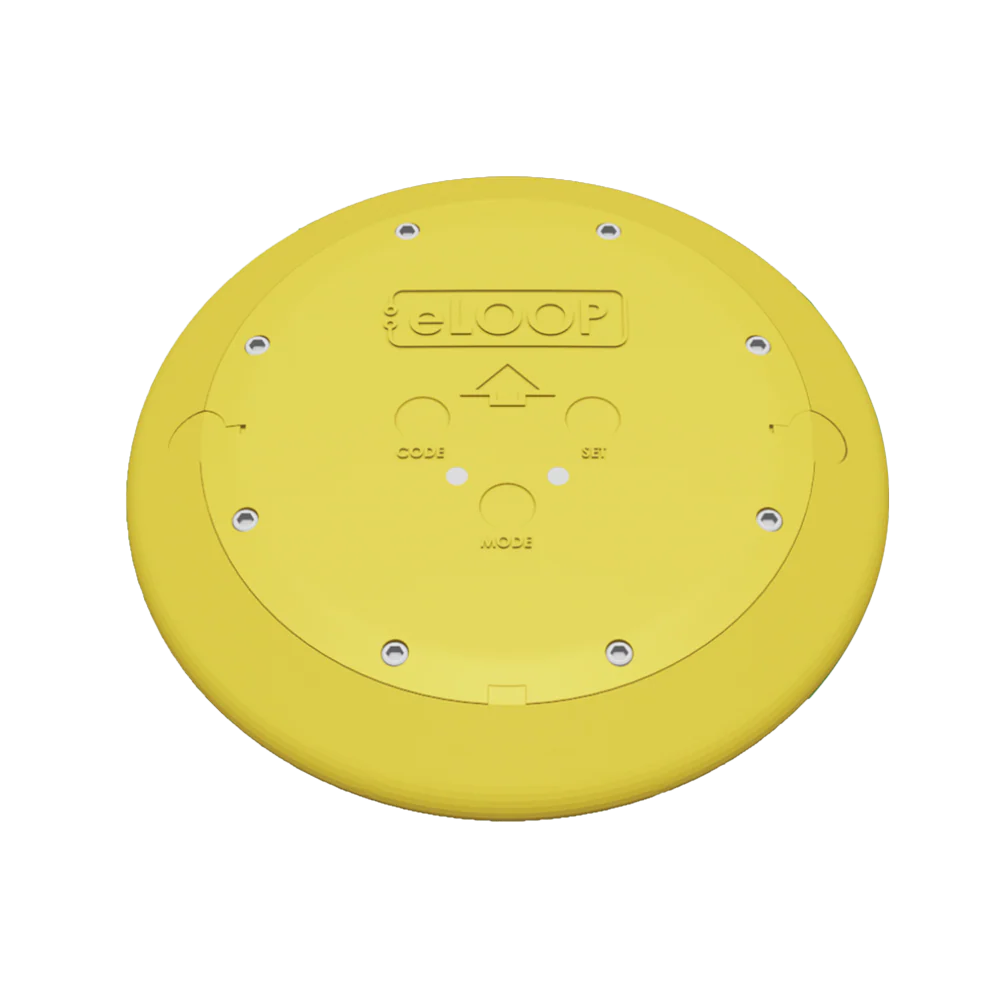

E-Loop Exit is a wireless exit sensor housed in a super-strong housing specifically for commercial driveways.

A wireless exit option removes the need for intrusive driveway modifications like cutting or trenching for traditional inductive loops or vehicle probes. This wireless solution securely mounts on the driveway, communicating with a transceiver at distances of up to 50m.



The Commercial model uses magnetometer sensors to detect the presence of oncoming vehicles. These detections are transmitted to a nearby transceiver for gate activation. After the vehicle is detected, the e-loop will switch to radar mode. The sensors are installed on the surface of entry or exit passages using dyna bolts and contain four replaceable Lithium batteries. Rated to withstand a static load of 10,000kg it can withstand almost any vehicle.



The e-Loop Exit serves as a straightforward replacement for wired inductive loops, offering not only convenience but also cost savings and enhanced reliability.

Kit Contains

  • 1 x e-Loop wireless detection module
  • 1 x E-Trans50 Receiver
  • 2 x Dyna bolts

 Features

  • Lower power consumption/3-axis magnetometer for vehicle detection
  1. 8 Hz sampling rate
  2. Auto-calibration
  3. Exit/Entry detection mode
  • Fast and simple installation - Quick non-permanent installation
  • Up to 10 years battery life (Battery life is dependent on many factors, including daily activations, time used per activation, radar range, and external conditions.)
  1. Compact design
  2. Compatible with various gates
